1305701
full race
Bmw S65 B40 414hp
V-8cyl 4.0L 32v QOHC
intake
exhaust

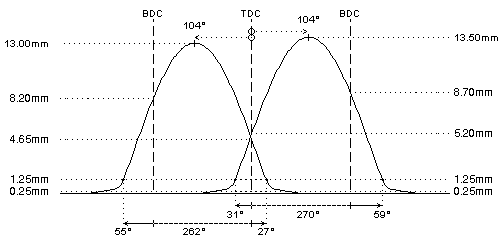

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 314°
306°
duration @ 1.0mm
: 270°
262°
valve lift
: 13.50mm
13.00mm
cam lift
: 13.50mm
13.00mm
lobe angle
: 104°
104°
timing @ 1.0mm
: 31° / 59°
55° / 27°
valve lift @ TDC
: 5.20mm
4.65mm
parts setup:
cam wheels :
:
:
follower
: View INFO
: View INFO
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: not available
: not available
lower retainer
: not available
: not available
exterior spring
: not available
: not available
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
#
valve spring kit can be developed on request
#
The original hydraulic spherical cam followers must be converted to solid cam followers.
REMARKS :
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
valve lift and timing data are illustrated on fixed centerline (disabled VVT system)
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
