1305601
sport
Bmw S85 B50 500hp
V-10cyl 5.0L 40v QOHC
intake
exhaust

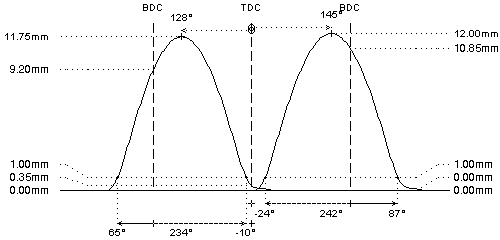

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 292°
284°
duration @ 1.0mm
: 243°
235°
valve lift
: 12.00mm
11.75mm
cam lift
: 12.00mm
11.75mm
lobe angle
: 145°
128°
timing @ 1.0mm
: -24° / 87°
65° / -10°
valve lift @ TDC
: 0.00mm
0.35mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#
check std valve spring setup for coil bind length and use valve spring kit if required
#
Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!
