tarmac rally - race
Bmw M54B30 228hp, vanos in+ex
I-6cyl 3.0L 24v DOHC
intake
exhaust

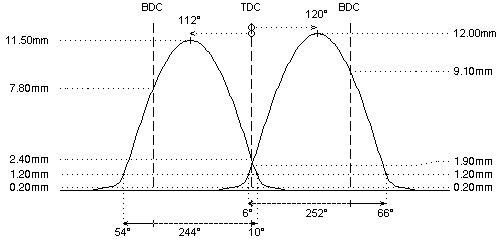

camshaft data:
lash ramp
: 0.20mm
0.20mm
duration @ 0.1mm
: 290°
282°
duration @ 1.0mm
: 252°
244°
valve lift
: 12.00mm
11.50mm
cam lift
:
lobe angle
: 120°
112°
timing @ 1.0mm
: 6° / 66°
54° / 10°
valve lift @ TDC
: 1.90mm
2.40mm
parts setup:
cam wheels :
:
:
follower
: View CC002
: View CC002
valve lash
: View TS101
: View TS101
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99468/s
: View 99468/s
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: View PAC-S99843
: View PAC-S99843
interior spring
fitted load / length
: 35kg @ 37.5mm
: 35kg @ 37.5mm
max. load / lift
: 95kg @ 14.0mm
: 95kg @ 14.0mm
REMARKS :
REMARKS :
#
- steel billet camshafts
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
VVT reprogramming, operating range adjustment or even eliminating the VVT system should be considered for camshafts with increased duration
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
#
Check distance between valves and piston to be 1mm at least with VVT engaged. Wrong installation will cause severe engine damage!
