1303750
tarmac rally - race
Bmw M62 B44 286hp, non vanos
V-8cyl 4.4L 32v DOHC (DTH/DTH)
intake
exhaust

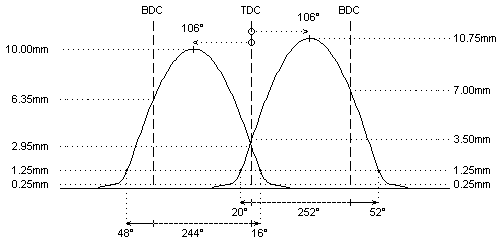

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 284°
276°
duration @ 1.0mm
: 252°
244°
valve lift
: 10.75mm
10.00mm
cam lift
:
lobe angle
: 106°
106°
timing @ 1.0mm
: 20° / 52°
48° / 16°
valve lift @ TDC
: 3.50mm
2.95mm
parts setup:
cam wheels :
:
:
follower
: View CC002
: View CC002
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
REMARKS :
#
- steel billet camshafts
- gundrilled for weight reduction
#
valve seals must be lowered, race valvespring kit is required (available on special request only)
#
- valve clearance is to be adjusted using mechanical lash caps
-
please make sure that the lash cap does not touch the valve locks !
#
FOR COMPETITION APPLICATIONS ONLY. Following details must be verified:
-
the camshafs must turn smooth in the cylinderhead, provide free travel by machining where needed
-
distance between valve seal and retainer at full lift must be 0.6mm at least
-
minimum valve spring travel of 1.0mm at full lift must be provided
-
distance between valve and piston 1.0mm (pref. 1.5mm). check 5-15° before TDC on exhaust, and after TDC on intake
#
ONLY for use in competition engines with independent engine management (throttle position sensor) or carburettors
