1303309
sport
Bmw S50 B30 286hp, vanos in
I-6cyl 3.0L 24v DOHC (DTs/DTs)
intake
exhaust

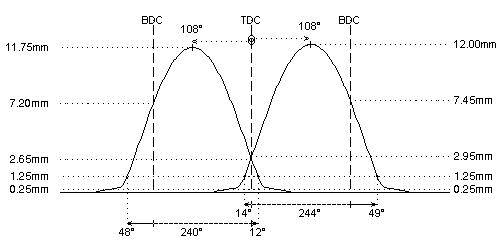

camshaft data:
lash ramp
: 0.25mm
0.25mm
duration @ 0.1mm
: 277°
274°
duration @ 1.0mm
: 243°
240°
valve lift
: 12.00mm
11.75mm
cam lift
: 12.00mm
11.75mm
lobe angle
: 108°
108°
timing @ 1.0mm
: 14° / 49°
48° / 12°
valve lift @ TDC
: 2.95mm
2.65mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: O.E.M.
: O.E.M.
lower retainer
: O.E.M.
: O.E.M.
exterior spring
: O.E.M.
: O.E.M.
interior spring
: O.E.M.
: O.E.M.
fitted load / length
: 36kg @ 35.5mm
: 36kg @ 35.5mm
max. load / lift
: 94kg @ 12.0mm
: 94kg @ 12.0mm
REMARKS :
REMARKS :
#
camshafts for use with disabled VANOS system
#
These cam profiles are adapted for O.E.M. mechanic tappets (37.5mm) with lash adjustment shim (33.0mm) between cam and follower ("shim over" type).
However, we advise to use race followers [ref. CC010] with lash adjustment shim between follower and valve ("shim under" type). This will eliminate the risk of shims being lifted from the cam follower. Also, the increased tappet surface will allow more performant cam profiles.
