O.E.M.
Bmw R56 N14, EP6DT (turbo with VVT on intake only)
I-4cyl 1.6L 16v DOHC (RPRH/RPRH)
intake
exhaust

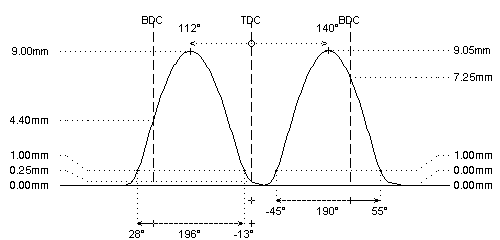

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 237°
240°
duration @ 1.0mm
: 190°
195°
valve lift
: 9.05mm
9.00mm
cam lift
: 5.45mm
5.45mm
lobe angle
: 140°
112°
timing @ 1.0mm
: -45° / 55°
28° / -13°
valve lift @ TDC
: 0.00mm
0.25mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 27kg @ 33.7mm
: 27kg @ 33.7mm
max. load / lift
: 58kg @ 10.0mm
: 58kg @ 10.0mm
REMARKS :
REMARKS :
