O.E.M.
Alfa Romeo AR 335.03 103hp,VVT intake
I-4cyl 1.4L 16v DOHC (DTH/DTH)
intake
exhaust

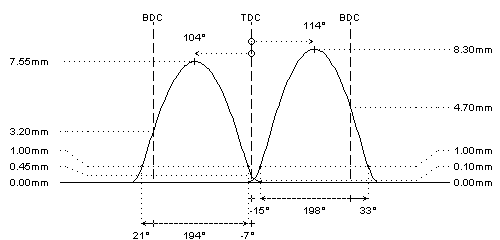

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 228°
227°
duration @ 1.0mm
: 198°
194°
valve lift
: 8.30mm
7.55mm
cam lift
:
lobe angle
: 114°
104°
timing @ 1.0mm
: -15° / 33°
21° / -7°
valve lift @ TDC
: 0.10mm
0.45mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 0kg @ 0.0mm
: 0kg @ 0.0mm
max. load / lift
: 0kg @ 0.0mm
: 0kg @ 0.0mm
REMARKS :
#
original valve spring info is not available
REMARKS :
#
- steel billet cams
#
original valve spring info is not available
