1030910
sport
Alfa Romeo 190hp
V-6cyl 2.5L 24v QOHC (DTH/DTH)
intake
exhaust

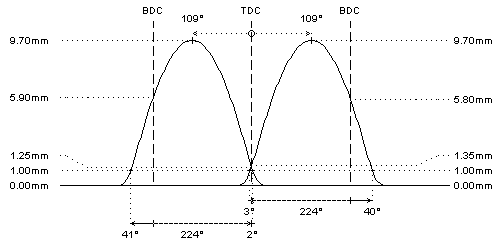

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 254°
254°
duration @ 1.0mm
: 223°
223°
valve lift
: 9.70mm
9.70mm
cam lift
:
lobe angle
: 109°
109°
timing @ 1.0mm
: 3° / 40°
41° / 2°
valve lift @ TDC
: 1.35mm
1.25mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
:
O.E.M.
:
O.E.M.
fitted load / length
: 38kg @ 32.0mm
: 38kg @ 32.0mm
max. load / lift
: 72kg @ 9.5mm
: 72kg @ 9.5mm
REMARKS :
REMARKS :
#
-
10309xx
: V6 2.5L 24v engines (narrow valve & lobe spacing)
-
10329xx
: V6 3.0-3.2L 24v engines (wide valve & lobe spacing)
- steel billet camshafts
