O.E.M.
Audi AJG 163hp
V-6cyl 2.4L 30v DOHC (DTH/DTH)
intake
exhaust

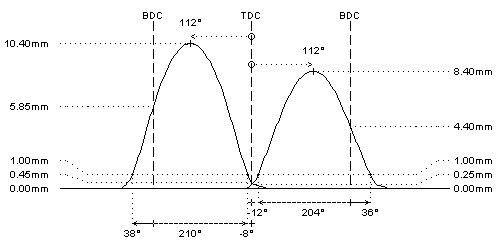

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 245°
253°
duration @ 1.0mm
: 204°
210°
valve lift
: 8.40mm
10.40mm
cam lift
:
lobe angle
: 112°
112°
timing @ 1.0mm
: -12° / 36°
38° / -8°
valve lift @ TDC
: 0.25mm
0.45mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
fitted load / length
: 19kg @ 34.6mm
: 29kg @ 33.1mm
max. load / lift
: 53kg @ 10.0mm
: 63kg @ 11.0mm
REMARKS :
REMARKS :
#
- steel billet camshafts
- supplied with
adjustable chain sprockets
to optimize intake cam timing
