1003422
sport
Audi ABC 1st generation: 8mm valves
V-6cyl 2.6L 12v SOHC (DTH/DTH)
intake
exhaust

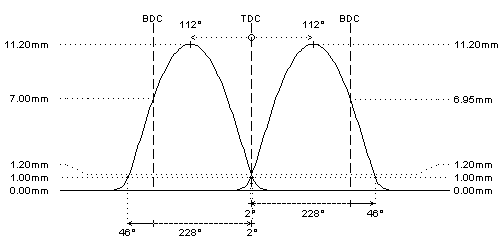

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 267°
267°
duration @ 1.0mm
: 228°
228°
valve lift
: 11.20mm
11.20mm
cam lift
:
lobe angle
: 112°
112°
timing @ 1.0mm
: 2° / 46°
46° / 2°
valve lift @ TDC
: 1.20mm
1.20mm
parts setup:
cam wheels :
:
:
follower
:
O.E.M.
:
O.E.M.
valve lash
:
O.E.M.
:
O.E.M.
valve
:
O.E.M.
:
O.E.M.
valve locks
:
O.E.M.
:
O.E.M.
upper retainer
:
O.E.M.
:
O.E.M.
lower retainer
:
O.E.M.
:
O.E.M.
exterior spring
:
O.E.M.
:
O.E.M.
interior spring
:
O.E.M.
:
O.E.M.
fitted load / length
: 25kg @ 32.5mm
: 25kg @ 32.5mm
max. load / lift
: 77kg @ 12.0mm
: 77kg @ 12.0mm
REMARKS :
REMARKS :
