1003204
sport
Audi PT 250hp
V-8cyl 3.6L 32v DOHC (DTH/DTH)
intake
exhaust

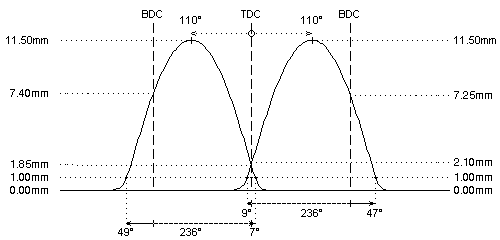

camshaft data:
lash ramp
: hydro
hydro
duration @ 0.1mm
: 267°
267°
duration @ 1.0mm
: 236°
236°
valve lift
: 11.50mm
11.50mm
cam lift
:
lobe angle
: 110°
110°
timing @ 1.0mm
: 9° / 47°
49° / 7°
valve lift @ TDC
: 2.10mm
1.85mm
parts setup:
cam wheels :
:
:
follower
: O.E.M.
: O.E.M.
valve lash
: O.E.M.
: O.E.M.
valve
: O.E.M.
: O.E.M.
valve locks
: O.E.M.
: O.E.M.
upper retainer
: View 99370
: View 99370
lower retainer
: not available
: not available
exterior spring
: View PAC-E95009
: View PAC-E95009
interior spring
: View PAC-I95009
: View PAC-I95009
fitted load / length
: 35kg @ 35.0mm
: 35kg @ 35.0mm
max. load / lift
: 102kg @ 12.5mm
: 102kg @ 12.5mm
REMARKS :
#
ONLY for 7mm valves with single groove (RK-7H valve keepers)
REMARKS :
#
- steel billet camshafts
- flat crank race cams available
- more profiles available
#
two different tappet sizes are used:
a) 35.0mm/1.378" tappets (ABZ & AEM for A8 4.2l; AEC for S6 4.2l)
b) 33.5mm/1.319" tappets (other)
#
for use on both 33.5mm/1.319" and 35mm/1.378" tappets
#
supplied with adjustable gear set on steel lightweight billets
#
ONLY for dirt track applications and pro street use with adjustable engine management or carburettors
